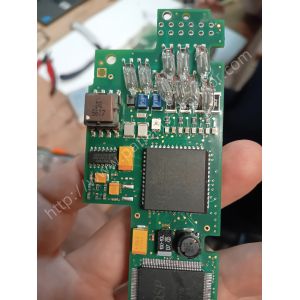

PHiliph ECG Board PCB Circuit Board for Intellivue X2 Portable Patient Monitor M3001-66413 M3001-66458

Description

The ECG measurement board (electrocardiogram measurement module) of the monitor is one of the core components of the monitor. It is responsible for collecting, amplifying, filtering and processing the patient's electrocardiogram signals and converting them into displayable waveforms and numerical values (such as heart rate, ST segment analysis, etc.).

Function:

1. ECG signal acquisition

- Electrode connection: Connect the electrode patch on the patient's body surface through lead wires (such as 3-lead, 5-lead, 12-lead) to collect weak ECG signals (usually millivolt level).

- Signal amplification: Due to the low original ECG signal-to-noise ratio, the ECG board needs to perform high gain amplification (about 1000 times) to improve measurability.

2. Signal processing

- Filtering and denoising: Eliminate power frequency interference (50/60Hz), myoelectric interference, baseline drift, etc. Further optimize signal quality through digital filtering.

- Analog-to-digital conversion (ADC): Convert analog ECG signals into digital signals for analysis by the monitor main control board.

3. Data analysis and output:

- Heart rate calculation: Real-time calculation of heart rate (HR) through R wave detection algorithm.

- Rhythm analysis: Identification of arrhythmias (such as atrial fibrillation, premature ventricular contractions, etc.).

- ST segment monitoring: Used for diagnosis of myocardial ischemia (such as ST segment elevation/depression).

- Alarm triggering: Triggering an alarm when an abnormality is detected (such as high/low heart rate, ventricular fibrillation).

Warranty

Warranty period: 90 days

We provide warranty for both new and used equipment. Different equipment has different warranty periods. You can contact us to check the warranty details.

Delivery Details

Express delivery method: DHL, FedEx, UPS, etc.

Once payment is completed, we will immediately deliver the product to you quickly and safely. And the delivery date is about 3-5 working days, the shipping cost depends on your country and region.

If your delivery date is longer than expected, or you want to know the shipping details, you can contact us at any time.

Quality

Whether it is new equipment or old equipment, our engineers will conduct a comprehensive inspection before arranging delivery, and we have a 3 month warranty period, so you can purchase with confidence.

Warning

1. It's must use the correct electrical outlet to avoid damage or malfunction.

2. Try to avoid long-term storage, especially in high temperature and high humidity environments.

3. Do not use high-temperature, high-pressure vapour or ionizing radiation as disinfection methods.

4. Do not use chloric disinfectant such as chloride, sodium hypochlorite etc.

5. Please keep it away from water and fire.

We also provide other medical equipment and accessories. If you have any other needs or any questions about this product, please feel free to contact us, we will reply you as soon as possible.
